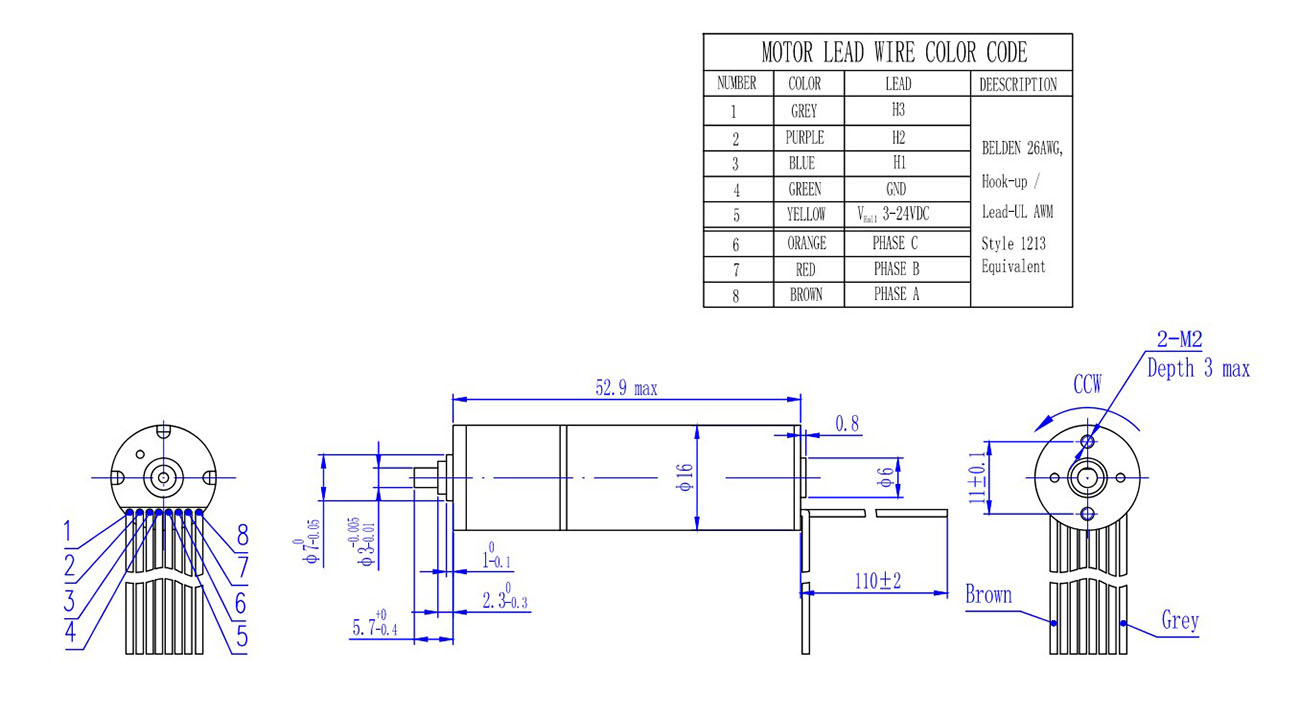

DC Gear Motor

1、Motor rotation direction:CW viewed from shaft end with lead wire color code as required.

2、Motor performance at 5.7Vdc（6.0Vdc Max）.

No-load speed 315rpm+/-10%，No-load current 0.30Amp Max.

Load speed 220rpm+/-10%，Load current 1.40Amp Max，Load point 1.5kg-cm.

Max momentary load torque 2.0kg-cm.

3、Gear ration 36:1，planetary gear.
